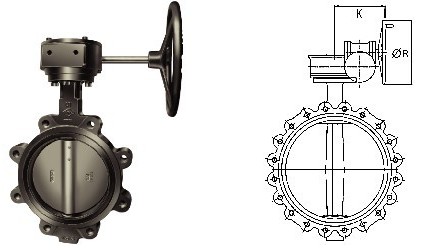

本产品名称：fig.096b铸铁蝶阀 台湾东光铸铁蝶阀 fig.096b全耳式蝶阀 jis-10k/150lb
本产品台湾叫法：fig.096b-鑄鐵全耳式蝶閥(齒輪式)
jis-10k/150lb
|
fig.096b-铸铁全耳式蝶阀(齿轮式)
|
|
cast iron butterfly valve |
full lug type body,resilient seat,center driver disc.
|
|
|
零件 part
|
材质 material
|
| 阀体 body |
cast iron (fc20) |
| 挡流盘 disc |
stainless steel |
| |
(opion:al-bronze) |
| 阀杆 stem |
stainless steel
(sus410) |
| 挡流垫圈 seat |
epdm(option:nbr) |
最高使用压力
|
试验压力(水压)
|
90°c以下之静流水
|
阀体
|
阀座
|
| 10.0kg f/cm2 |
15.0kg f/cm2
|
11.0kg f/cm2
|
|
|
|
尺寸
|
2
|
21/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
24
|
l
|
43
|
46
|
46
|
52
|
56
|
56
|
60
|
68
|
78
|
78
|
102
|
114
|
127
|
154
|
10 k
|
φc
|
120
|
140
|
150
|
175
|
210
|
240
|
290
|
355
|
400
|
445
|
510
|
565
|
620
|
730
|
n-tap
|
4-m16
|
4-m16
|
8-m16
|
8-m16
|
8-m20
|
8-m20
|
12-m20
|
12-m22
|
16-m22
|
16-m22
|
16-m24
|
20-m24
|
20-m24
|
24-m30
|
≠150
|
φc
|
121
|
140
|
152
|
191
|
216
|
241
|
299
|
362
|
432
|
476
|
540
|
578
|
635
|
749
|
n-tap
|
4-5/8
|
4-5/8
|
4-5/8
|
8-5/8
|
8-3/4
|
8-3/4
|
8-3/4
|
12-7/8
|
12-7/8
|
12-1
|
16-1
|
16-1-1/8
|
20-1-1/8
|
20-1-1/4
|
pn16
|
φc
|
125
|
145
|
160
|
180
|
210
|
240
|
295
|
355
|
410
|
470
|
525
|
585
|
650
|
770
|
n-tap
|
4-m16
|
4-m16
|
8-m16
|
8-m16
|
8-m16
|
8-m20
|
12-m20
|
12-m22
|
12-m24
|
16-m24
|
16-m27
|
20-m27
|
20-m30
|
20-m33
|
k
|
204.5
|
204.5
|
204.5
|
204.5
|
204.5
|
204.5
|
325
|
325
|
308
|
308
|
330
|
330
|
350
|
395
|
φr
|
150
|
150
|
150
|
150
|
150
|
150
|
300
|
300
|
300
|
300
|
300
|
300
|
380
|
380
|
x
|
266.7
|
266.7
|
266.7
|
266.7
|
313
|
313
|
|
|
|
